Mobile compactor Drive panels

Get a Price/Quote

MOQ : 4 Pieces

Mobile compactor Drive panels Specification

Mounting Type
Floor Mounted

Operating Mode
Manual/ Motorized

Size
Customizable per requirement (Standard: Height 2150 mm x Depth 450 mm x Length variable)

Interface
Rotating hand wheel/manual lever/motorized control panel

License Free
Yes

Standard
Conforms to IS Standards for Storage Systems

Technology
Manual (Mechanical) / Motorized Drive Panel

Special Features
Space optimization, locking system, smooth movement

Remote Control
Available for motorized drive panels (optional)

Application
Storage of files, records, documents in offices, banks, hospitals

Power Supply
Required for motorized panels (220V AC), manual operation does not require power

Expandability
Modular can be expanded or reconfigured

Load Capacity
80 - 100 kg per shelf

Locking System
Centralized locking with anti-tilting mechanism

Panel Thickness
0.8 mm to 1.0 mm

Color Options
RAL standard colors, custom available

Manufacturing Standard
ISO 9001 certified process

Number of Shelves
Configurable (Standard 5, customizable)

Rail Type
Cold rolled steel rails with corrosion-resistant treatment

Mobility
Heavy-duty rails with smooth running castors

Assembly
Knockdown for easy onsite installation

Safety Features
Anti-toppling mechanism, aisle lock

Material
Powder-coated CRCA steel

Panel Type

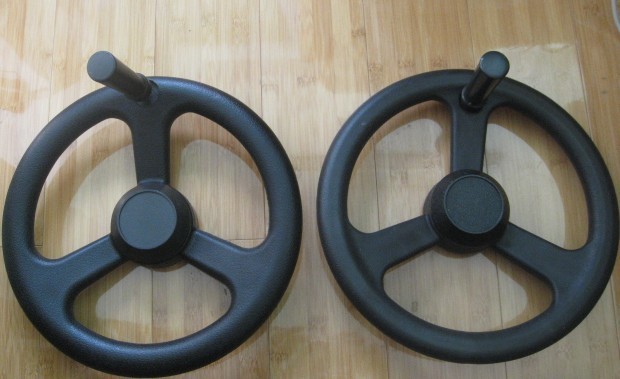

Drive panel with ergonomic hand wheel, robust construction

Finish Type
Epoxy Polyester Powder Coated

Suitable Environment
Indoor dry location

About Mobile compactor Drive panels

Leveraging on our marketing expertise, we are able to offer the different manufacturers of Compactor Drive Panel with the compactor drive panel accessory, required for moving the individual compactor units to and fro with minimum effort. This helps such manufacturers to save on their time and labour. We supply high quality drive panels that find usage in light and medium duty racks in places such as banks, libraries, offices and storage related industries.

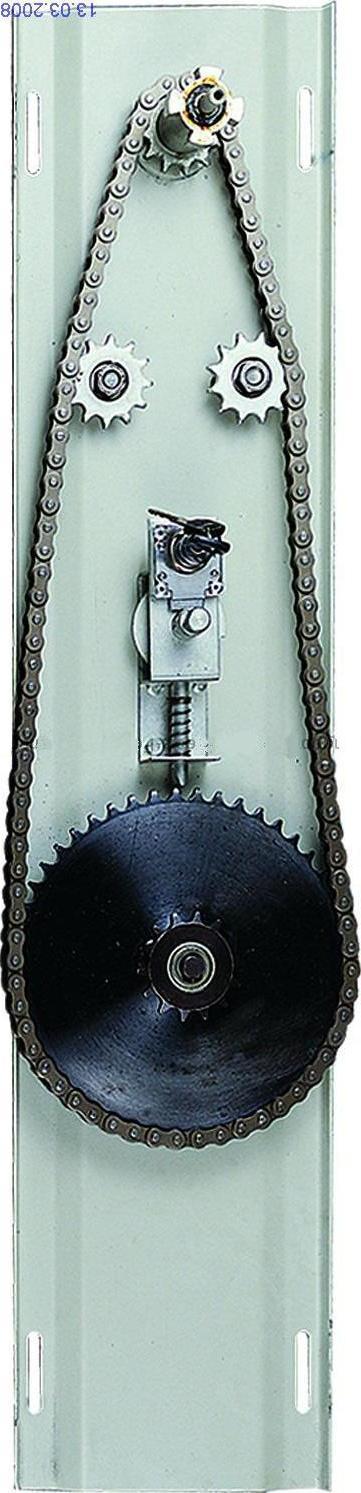

Following:

Sprokets
Chain
P.U.Wheel
Lock

Advanced Storage Solution

The mobile compactor drive panel system offers a versatile and space-saving approach for filing and document storage in diverse environments. With both manual and motorized drive options, users can select the best operational mode to suit their requirements. The system's modular design means it can be tailored and adapted as storage demands change, making it perfect for growing organizations.

Built for Safety and Durability

Each unit is constructed from strong CRCA steel and coated with an epoxy polyester powder finish, ensuring a long service life and resistance to daily wear. Safety is reinforced through features like centralized locking, anti-tilting mechanisms, and an anti-toppling structure, making the system reliable for securing sensitive documents and valuable records.

FAQ's of Mobile compactor Drive panels:

Q: How are mobile compactor drive panels installed and configured onsite?

A: Mobile compactor drive panels are supplied in a knockdown format, ensuring easy transportation and assembly at your location. The modular design allows straightforward configuration and expansion, making them easy to set up according to space requirements.

Q: What environments are suitable for installing these drive panels?

A: These panels are specifically designed for indoor, dry locations such as offices, banks, and hospitals. The construction and coating protect them from corrosion, making them ideal for document, file, and record storage in controlled environments.

Q: When should I consider using a motorized drive panel over a manual one?

A: Motorized drive panels are recommended when handling heavy loads frequently or in settings where ease-of-use and accessibility are prioritized, such as in large-scale archives. Manual panels are best for smaller installations or where cost-efficiency and simplicity are preferred.

Q: Where can the color and size of the drive panels be customized?

A: Both size and color can be customized to fit your specific interiors and storage requirements. Panels are available in standard RAL colors or any custom shade, and sizes can be tailored to your available space, following standard or unique specifications.

Q: What is the process for expanding the storage capacity of these compactors?

A: Thanks to the modular design, additional panels and shelves can be integrated at any time. This allows the storage system to grow alongside your needs without major overhauls-simply connect new units to your existing rail system.

Q: How does the locking system enhance safety and security?

A: The centralized locking system features an anti-tilting and anti-toppling mechanism, securing all aisles at once and preventing accidental movement or unauthorized access, thereby protecting your stored files and documents.

Q: What are the key benefits of using mobile compactor drive panels?

A: These systems optimize floor space, enhance organizational efficiency, and offer robust protection for sensitive records. Their smooth gliding rails, secure locking mechanisms, and flexible configurations deliver a high-performance, adaptable storage solution, compliant with IS and ISO 9001 standards.
